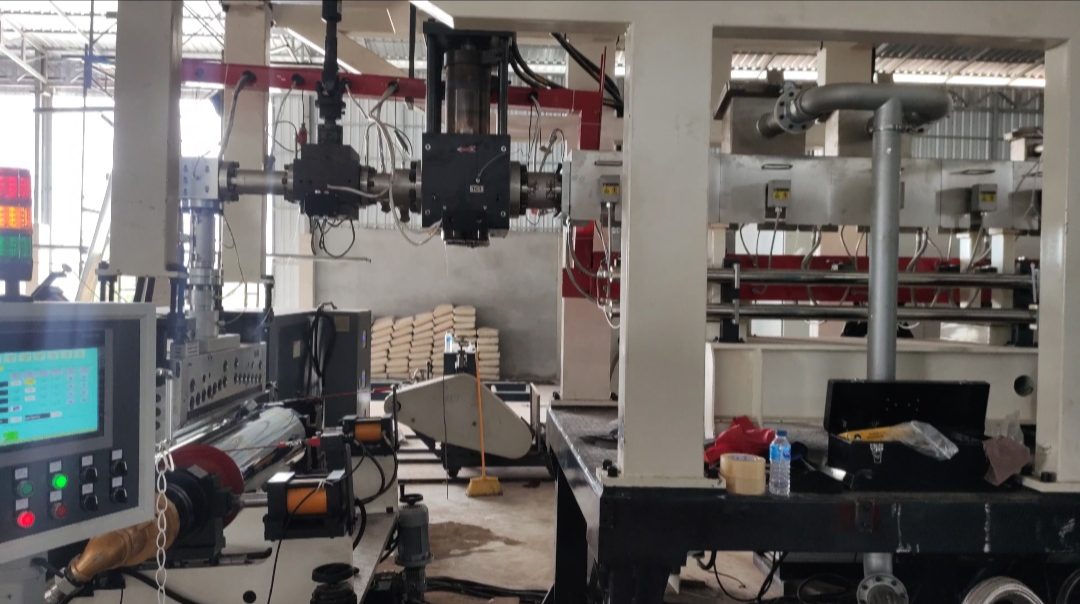

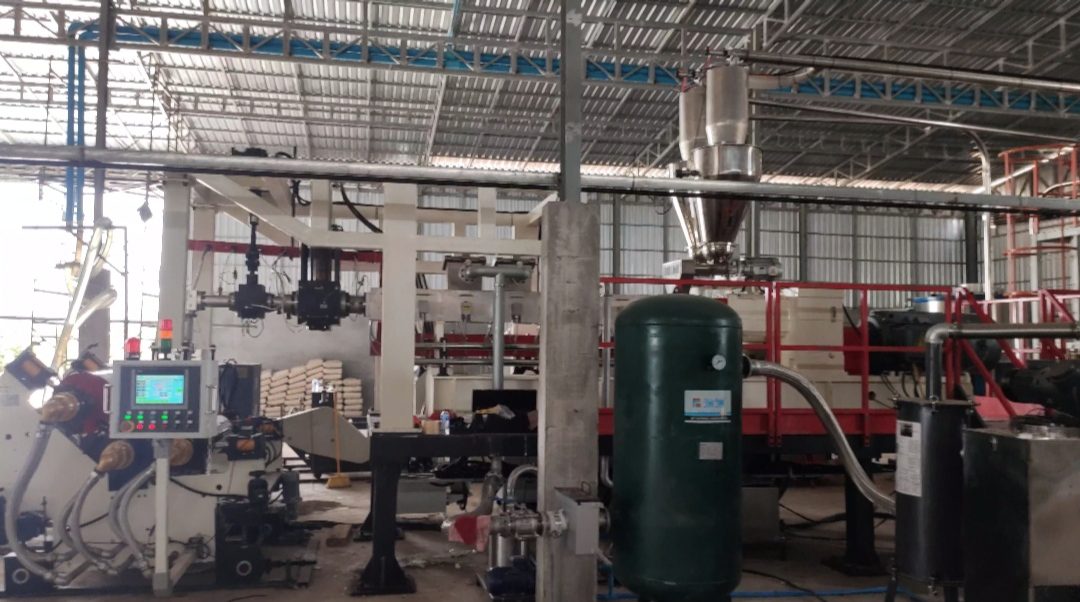

Twin-Screw PET/PLA Sheet Extruder

The PET Twin-Screw Co-Extruded Sheet Production Line features an innovative parallel twin-screw mixing extruder system that ensures superior performance for PET processing. This advanced system includes hunger feeding, high-efficiency mixing, de-swinging exhaust, and self-cleaning capabilities for stable extrusion. The optimized vacuum exhaust system eliminates the need for a raw material crystallization drying system, though adding a crystallization drying device can further enhance the competitiveness of the sheet product. This versatile production line is perfect for manufacturing APET sheets, PETG sheets, CPET sheets, and PLA sheets, making it an ideal choice for various PET sheet extruder applications.

2D View

pet extruder 2d layout

Technical Parameters

Model ZHPET-1000
Raw material APET, PETG,CPET PLA
Width 350-850mm
Thickness 0.15-1.8mm
Screw Diameter Ø75mm
Three-roll size Down:Ø2 320*900 ;Middle&Upper:Ø2 500*900
Motor Power 132kw
Heating Power 80kw
Dimensions 20*2.5*2.8m
Weight 20 ton
Max Capacity 350kg









Equipment configuration

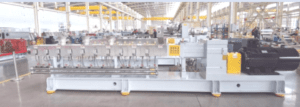

pet extruder screw jc time

 Screw Barrel

  • Screw material:The screw element is made of wear-resistant material and nitrided steel.
  • Screw hardness:HV950.
  • Barrel material:barrel wear-resistant material, nitrided steel.
  • Barrel hardness:HV 1050.
  • Screw diameter:65mm.
  • L / D:44.
  • Cartridge heater Cast copper for the first three zones, cast aluminum for the rest.
  • Total heating power:50kw.
  • Cooling mode: Circulating water pump: motor power 0.55kw.

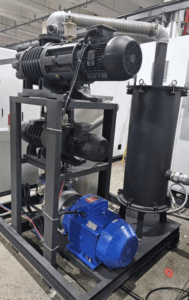

PET EXTRUDER Vaccum pump

Vacuum

  • Type of vacuum pump: Roots-Roots-water ring pump set, three-stage vacuum system.
  • Ultimate vacuum degree: ≤10Pa.
  • Maximum pumping volume: 150L/S.
  • Operating vacuum degree: ≤300Pa.
  • Vacuum tank material: SS304.
  • With Feeding device.
  • Two vacuum degassing ports, one natural degassing port..
PET extruder screen changer

Hydraulic Screen Exchanger

  • Hydraulic drive: manual control, hydraulic screen changer.
  • Structural mode: double column Two station.
  • Heating method: stainless steel heating rod heating.
meter pump Extruder

Melt Pump

  • Pump Drive Connection: Cardan Shaft Connectors.
  • Gearbox+AC Motor.
  • Pressure sensor: GEFRAN/GRAEFE is used in front of the pump, and domestically produced after the pump in front of the mesh.

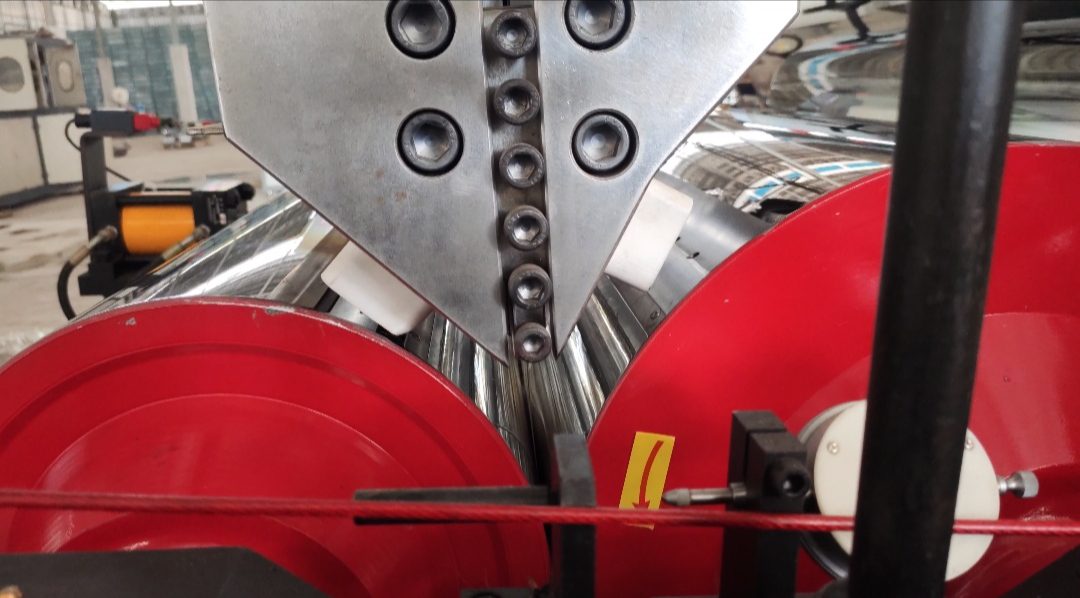

PET Extruder t die

T-die

  • Structure: Hanger runner (JC time brand).
  • Material: High-quality die steel.
  • The runner in the mold is chrome-plated, and the minimum thickness of the chrome-plated layer is 0.03-0.05mm.
  • Polished to mirror surface (cavity Ra 0.1um, die lip Ra 0.05um).
3 Roller calender

Three -roller calender

  • Coaxiality: ≤0.005mm.
  • Surface finish of roller: Ra≤0.016um.
  • Roll surface hardness: HRC58-62.
  • Chrome plating thickness:≥0.08mm.
  • Gearbox+Motor
  • Transmission power: 4.4Kw.
  • Three-roller gap adjustment method: Hydraulic opening and closing, manual worm gear and worm fine adjustment, with self-locking function, safety emergency stop switch, synchronous control system.
  • Three-roller form: Horizontal J shape.
  • Three-roller wall panel: overall solid steel plate.
  • Three-roller bearing: Japan NSK.
  • Rotary joint: domestic high quality.
  • The three rollers have mechanical fixed limit and safety pull switch.
Roller temp controller

Roller Temperature Controller

  • Cooling medium: softened and purified water.
  • Temperature control range: room temperature to 100 ℃.
  • Temperature control accuracy: ±1℃.
  • Water pump: stainless steel pump.
  • Power: 4KW.
  • The condenser adopts double parallel type to enhance cooling.
  • Water valve: pneumatic angle seat valve.
  • The installation position is on the side of the cooling bracket, which is convenient to move and maintain.
Stripper and colling unit PET Extruder

Cooling Supporting Frame & Side Trimming Unit

  • Bracket Length: 5m.
  • Bracket of pulling rollers (no power):Aluminum rollers.
  • Specification:Φ70×800mm.
  • Trimming device: 2 round knives.
  • Waste edge winding device: 2 sets.
  • Equipped with static eliminator: 1 set.
  • Online crusher air delivery: 1 set.

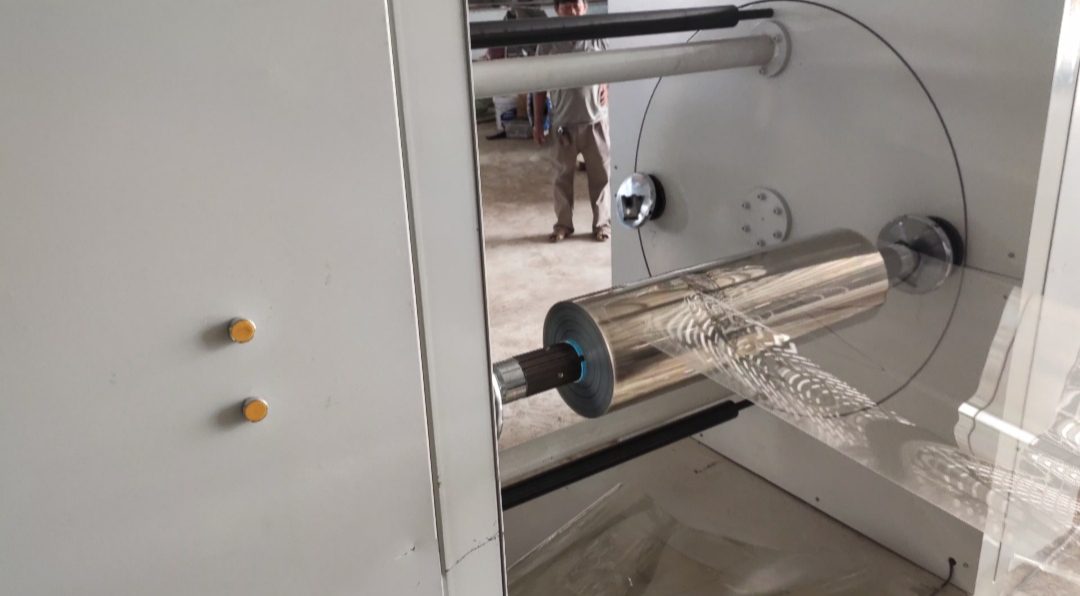

Turrent winder Sheet extruder

Turrent Winder

  • Form: double station flip.
  • Control: Automatic fixed length counting.
  • Rewinding diameter: <800mm.
  • Specifications: paper tube core 3 inches.
PET Extruder Control Pannel

Electrical Control System

  • Operation panel: Delta.
  • PLC: DELTA.
  • Main inverter: Inovance.
  • Contactor: Schneider/Siemens.
  • Relay: Schneider/Omron.
  • Low voltage circuit breaker: Schneider.
  • Air switch: Schneider /Chint.
  • Button switch, indicator light: Schneider/Siemens.
  • Display table: Autonics.
Haul off unit

  • Specifications: Ф200×800mm
  • Upper roller Material: nitrile rubber roller
  • Lower roller Material: chrome-plated steel roll
  • Gearbox+Motor
  • Power: 3KW
  • Synchronized with three rolls can also be independent

Drive

  • Motor:AC motor.
  • Power: 90kw-6.
  • High Torque:Gearbox.
  • Bearings:NSK.
  • Connection mode: direct connection.
  • Mainframe height form: steel platform.



Feeding system

  • Mixer, vacuum feeders.
  • Color dosing feederoptional).
  • Two hoppers, one for new material, one for flakes.
  • JWP  75/44 parallel twin screw extruder.
