The thermoforming Machine Can produce various kind of disposable plastic cup, plastic containers of cooling drinks, sour milk, ice-cream, fast food, or instant noodle, as well as different kinds of merchandise packages of medicine, toy, journal. textile and light industry, etc.
| ZH800/500 | |
| Sheet Materials | PP.PS.PET.PE.ABS |
| Sheet Width | 600-820mm |
| Sheet Thickness | 0.3-2.5mm |
| Max. Forming Area | 800×500 |
| Max. Cup Height | 180mm |
| Forming Pressure | 0.5-0.8Mpa |
| Productivity（cycles） | 10-35cycles/min |
| Motor Power | 15kw |
| Heading Power | 120kw |
| Total Weight | 6ton |
| Water Consumption | 40-45L/min |
| Air Consumption | 2500-3500L/min |
| Overall Dimensions | 4600x1700x2600mm |
Configuration
| Forming solenoid valve | Japan, SMC |
| Pneumatic pressure regulating valve | Japan, SMC |
| Cooling solenoid valve | Taiwan, AIRTAC |
| Heating box solenoid valve | Taiwan, AIRTAC |
| Blowing solenoid valve | Taiwan, AIRTAC |
| Air cylinder | Φ400mm, 1000mm * 2 |
| Air consumption | 1.5-1.8m³/min |
| Heating box cylinder | Yida pneumatic |
| Auxiliary cylinder | Yida pneumatic |
| Relay | JAPAN, OMRON |
| Intelligent voltage regulating module | Beijing, Lingtong |
| Feeding Servo Motor 3kw | Japan Yaskawa |
| Forming Servo Motor 5.5kw | Japan Yaskawa |
| Driver Servo Motor 15kw | Japan Yaskawa |
| PLC | TRIO |
| Touch screen control | FLEXEM |
| Air switch | France, Schneider |
| AC contactor | France, Schneider |
| Current transformer | France Schneider |
| Button | France, Schneider |
| Ammeter | China, HUANAN |
| Voltmeter | China, HUANAN |
HEATER SYSTEM
| Heating length | 7 times of max forming area |
| Heater material | Little infrared ceramic tile heating, more uniform |
|
Upper heaters arrangement – 11 group |
240mm*80mm two lines heater, each pcs 650W, 70pcs in all.
240mm*80mm four lines heater, each pcs 650W, 10pcs in all. 120*80mm two lines heater, each 300W, 15pcs in all. 120*80mm four lines heater, each 300W, 15pcs in all. |
| Down heaters arrangement – 11 group | 240mm*80mm two lines heater, each pcs 650W, 70pcs in all.
240mm*80mm four lines heater, each pcs 650W, 10pcs in all. 120*60mm two lines heater, each 300W, 10pcs in all. |
| Temperature control | Tolerance：±1℃, the 3 groups of upper heating tiles near the forming station are controlled for temperature one by one, and the other groups are controlled one group by one group. |
| Frame material | 304 stainless steel |
| Heater brand | Dongtai tianbao，China |
| Heater mode | Embedded ceramic infrared radiant panel is adopted |
| Heater box size | upper L2880mm×W930mm；
lower L2830mm×W930mm |
| Temperature control mode | The intelligent temperature controller is adopted |
| Oven structure | Adopt pneumatic drawer structure |
| Safety action | Manual blowing cooling to prevent sheet from falling |
Machine Parts Details

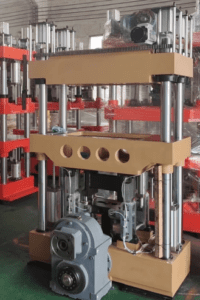

| 4 Pillars Srovo Construction
Can be performed for much better quality of products with different shapes (round, rectangular, oval, square shape with big sizes), highly increase the rate of finished products, and more steadily operation. |
|
| PLC |
|

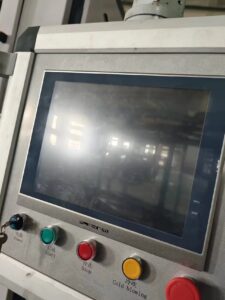

| TOUCH SCREEN (KUNLUNTONGTAI) |
|

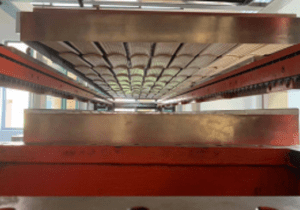

| Oven Heating System |
|

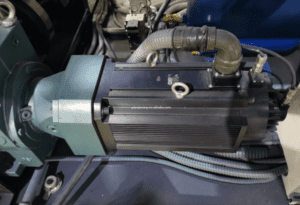

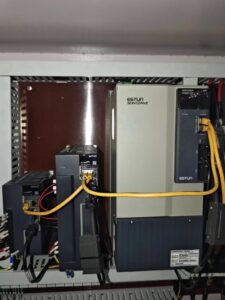

| Main Serov motor |
|

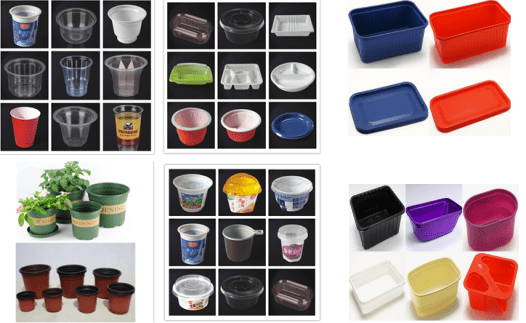

PRODUCT RANGE
