1. Introduction

For packaging manufacturers aiming to boost the strength, durability, and visual appeal of corrugated packaging—whether for shipping boxes, retail displays, or custom orders—a flute laminator machine is essential equipment. If you’re a procurement manager or production supervisor looking to optimize your line, this guide has you covered.

We’ll break down the machine’s core function, how it works, available types, and how to choose the right one. Understanding flute laminators will help you make smart investment decisions to streamline workflows and grow your business.

2. What Is a Flute Laminator Machine?

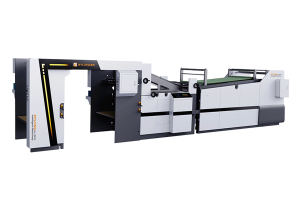

A flute laminator machine (also known as a corrugated laminator) is a specialized industrial device designed to bond flat paper facings (called “liner boards”) to corrugated cardboard cores (the “fluted” layer). This lamination process creates strong, rigid corrugated packaging materials that can withstand shipping stress, protect products, and even serve as branded retail displays.

Key components of a standard flute laminator include: a feeding system for liner boards and corrugated cores, an adhesive application unit (usually using water-based glue for sustainability), a pressing mechanism to ensure tight bonding, and a drying or curing section to set the adhesive. These machines are tailored for packaging manufacturers working with corrugated materials, supporting both small-batch custom orders and large-scale mass production.

3. How Does a Flute Laminator Work?

The lamination process for corrugated packaging is straightforward but precise, ensuring a strong bond between liner and fluted core. Here’s a step-by-step breakdown of how a flute laminator operates:

Feeding the Materials: The machine’s feeding system simultaneously loads the flat liner board (outer/inner facing) and the corrugated flute core. Some advanced models have dual feeding stations to handle multiple liner layers for extra strength.

Applying Adhesive: A roller or spray system applies a thin, even layer of adhesive to the peaks of the corrugated core. Water-based adhesives are the most common choice for packaging manufacturers, as they’re cost-effective, eco-friendly, and dry quickly.

Bonding the Layers: The adhesive-coated flute core is pressed against the liner board using heated or cold rollers. The pressure ensures the adhesive spreads evenly across the contact points, creating a tight bond. Heated rollers can speed up the drying process for faster production.

Drying/Curing: The bonded material moves through a drying tunnel or under UV lights (for UV-curable adhesives) to set the adhesive. This step is critical to prevent delamination during subsequent processes like cutting or printing.

Trimming and Stacking: Once dried, the laminated corrugated sheet is trimmed to the desired size and automatically stacked for easy transport to the next stage of production (e.g., die-cutting, printing, or box assembly).

4. Types of Flute Laminating Machines

Flute laminators come in two main types—fully automatic and semi-automatic—each designed to meet different production needs and operational scales. Below is a detailed comparison to help you identify which fits your workflow:

4.1 Fully Automatic Flute Laminator

Fully automatic flute laminators are built for high-volume, continuous production. They require minimal manual intervention, with automated feeding, adhesive application, bonding, drying, and stacking.

Key Features:

Automated material handling (robotic or conveyor-fed)

High production speed (up to 300 meters per minute)

Integrated drying systems for 24/7 operation

Digital control panels for precise settings (adhesive amount, pressure, speed)

Compatibility with multiple flute types (A, B, C, E flutes) and liner materials

Ideal For: Large packaging manufacturers with consistent, high-volume orders (e.g., shipping box producers, retail packaging suppliers).

4.2 Semi-Automatic Flute Laminator

Semi-automatic flute laminators require partial manual labor, typically for loading materials and stacking finished products. They’re more compact and budget-friendly than fully automatic models.

Key Features:

Manual feeding of liner boards and corrugated cores

Semi-automated adhesive application and pressing

Lower production speed (up to 100 meters per minute)

Simple control interfaces for easy operation

Suitable for small to medium batch sizes

Ideal For: Small to mid-sized packaging manufacturers, custom packaging shops, or businesses with variable order volumes.

Comparison Table: Fully Automatic vs. Semi-Automatic Flute Laminators

5. Key Benefits of Using a Flute Laminator in Corrugated Packaging

Investing in a quality flute laminator machine offers tangible advantages for packaging manufacturers, directly impacting product quality, operational efficiency, and bottom-line results:

Enhanced Packaging Strength: Laminated corrugated materials have superior load-bearing capacity and impact resistance, reducing product damage during shipping—a critical benefit for clients in industries like electronics, food, and pharmaceuticals.

Increased Production Efficiency: Automated or semi-automated processes cut down on manual labor time, allowing you to handle more orders and meet tight delivery deadlines. Fully automatic models can run 24/7, maximizing throughput.

Cost Savings: Consistent adhesive application reduces material waste, while automated workflows lower labor costs over time. Additionally, durable laminated packaging reduces returns due to damaged goods, saving you and your clients money.

Design Flexibility: Flute laminators work with a range of liner materials (including coated, printed, or recycled boards) and flute types, enabling you to create custom packaging solutions—from lightweight retail boxes to heavy-duty shipping containers.

Sustainability Compliance: Most modern flute laminators use water-based, non-toxic adhesives that meet global environmental standards. This helps you cater to clients seeking eco-friendly packaging options.

6. How to Choose a Flute Laminator Machine?

Selecting the right flute laminator requires aligning the machine’s capabilities with your specific production needs and business goals. Follow these steps to make an informed decision:

Assess Your Production Volume: If you handle 10,000+ corrugated sheets per day, a fully automatic model is worth the investment. For smaller batches (under 5,000 sheets/day), a semi-automatic machine will be more cost-effective.

Define Your Product Requirements: Consider the types of packaging you produce. For heavy-duty boxes (e.g., for industrial parts), choose a machine compatible with thick liners and large flute sizes (A or C flutes). For retail packaging, prioritize precision and compatibility with printed liners.

Evaluate Your Budget: Balance upfront costs with long-term savings. Fully automatic machines have higher initial prices but lower operational costs for high-volume runs. Semi-automatic models are better for businesses with limited capital or variable order volumes.

Check Maintenance and Support: Look for machines with easy-to-access components and a reliable supplier that offers maintenance services. Fully automatic machines may require more regular upkeep, so ensure you can access spare parts and technical support quickly.

Consider Future Scalability: If you plan to expand production, choose a machine that can grow with your business—e.g., a fully automatic model with modular components that can be upgraded, or a semi-automatic machine that can be integrated into a larger production line later.

Our team specializes in matching packaging manufacturers with the perfect flute laminator solutions. Whether you need a compact semi-automatic machine for custom orders or a high-speed fully automatic model for mass production, we offer personalized consultations to ensure you get the right equipment for your needs.

7. Conclusion

A flute laminator machine is a game-changer for packaging manufacturers looking to improve the strength, efficiency, and versatility of their corrugated packaging products. By understanding how these machines work, the different types available, and how to choose the right one, you can make strategic investments that boost your production capabilities and satisfy your clients’ demands.

Whether you’re a small custom shop or a large-scale packaging producer, the right flute laminator will help you reduce waste, cut costs, and deliver high-quality packaging that stands out in the market. With its ability to enhance both product performance and operational efficiency, a flute laminator is more than just equipment—it’s a tool for growing your business.

Ready to find the perfect flute laminator machine for your production line?All machines comply with CE safety standards and ISO9001-certified manufacturing processes.Contact our expert team today for a personalized quote and tailored recommendations.

Can semi-automatic laminators handle large-scale production?

Semi-automatic laminators are not ideal for continuous large-scale production. Their maximum speed (50–100 meters per minute) and need for manual feeding/stacking limit throughput, making them better suited for small to medium batches. For large-scale runs (10,000+ sheets/day), a fully automatic flute laminator is the more efficient choice, as it can operate continuously with minimal labor.

What are the maintenance requirements for fully automatic laminators?

Regular maintenance ensures the longevity and performance of fully automatic flute laminators. Key tasks include:

Cleaning adhesive application rollers daily to prevent buildup.

Inspecting and replacing worn conveyor belts or pressing rollers every 6–12 months.

Lubricating moving parts (e.g., gears, bearings) quarterly to reduce friction.

Calibrating digital controls and sensors monthly to maintain precision.

Checking the drying system (heaters, UV lights) regularly for optimal performance.Most suppliers offer maintenance plans to simplify upkeep—we recommend investing in these to avoid costly downtime.

How do I choose between a semi-automatic and a fully automatic laminator?

The choice depends on three core factors:

Production Volume: Choose fully automatic if you need high, continuous output; semi-automatic for smaller, variable batches.

Labor Availability: Fully automatic machines reduce labor costs but require a higher initial investment. Semi-automatic models are better if you have a dedicated team for manual tasks.

Budget: Semi-automatic machines have lower upfront costs, making them ideal for startups or small businesses. Fully automatic models offer better long-term ROI for high-volume producers.
