For plastic processing manufacturers, a high-quality plastic sheet extrusion line is key to consistent product quality, reduced waste, and meeting client demands—whether for packaging, automotive parts, or construction materials.
If you’re a procurement manager or production supervisor sourcing equipment, this guide breaks down the must-have features of a reliable extrusion line. You’ll get clear insights to make an informed purchase decision that aligns with your production goals and drives business success.

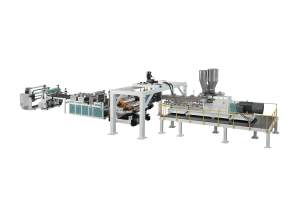

A plastic sheet extruder machine is a specialized industrial device that melts raw plastic materials (such as PP, PE, PVC, PET, or ABS) and shapes them into continuous flat sheets of uniform thickness. These machines are core components of a complete plastic sheet extrusion line, which also includes feeding systems, heating units, dies, cooling sections, and winding/ cutting equipment.
Key components of a standard plastic sheet extruder machine include:
Hopper: Stores and feeds raw plastic pellets into the extruder.
Screw: Rotates within a heated barrel to melt, mix, and push the plastic material forward.
Heating Barrel: Uses zone heating to gradually melt the plastic without degradation.
Die: Shapes the molten plastic into a flat sheet (common types include T-die and coat-hanger die).
Cooling System: Typically water-cooled rolls or air jets to solidify the sheet quickly.
Winder/Cutter: Trims the sheet to the desired width and winds it into rolls for storage or further processing.
The plastic sheet extrusion process follows a sequential, automated workflow to turn raw plastic into finished sheets. Here’s a step-by-step breakdown:
Material Feeding: Raw plastic pellets are loaded into the hopper, which feeds them at a controlled rate into the extruder’s heating barrel.
Melting and Mixing: The rotating screw pushes the pellets through the heated barrel (zoned to 150–300°C, depending on the material). The combination of heat and shear force melts the plastic, while the screw ensures uniform mixing (even for materials with additives like colorants or UV stabilizers).
Shaping via Die: The molten plastic is forced through a T-die or coat-hanger die, which spreads the material into a flat, continuous sheet of the desired width.
Cooling and Solidification: The extruded sheet passes through a series of water-cooled rolls or an air cooling tunnel. Rapid cooling locks in the sheet’s shape and prevents warping.
Trimming and Winding: The cooled sheet is trimmed to remove uneven edges, then wound into large rolls using a motorized winder. Some lines include inline cutting systems for custom sheet sizes.
Plastic sheet extrusion machines are primarily categorized by the number of screws in the extruder barrel. The two main types serve different production needs and material requirements:
4.1 Single-Screw Extruders
Single-screw extruders are the most common type, featuring a single rotating screw in the heating barrel. They are designed for simplicity, cost-effectiveness, and high-volume production of standard plastic sheets.
Key Features:
Simple design with fewer moving parts, reducing maintenance needs.
Lower upfront cost compared to twin-screw models.
Ideal for processing pure, homogeneous plastics (e.g., basic PP, PE, or PVC sheets).
Production speed ranges from 50–200 kg/hour, depending on the machine size.
Ideal For: Small to mid-sized manufacturers producing standard plastic sheets for packaging, disposable products, or construction materials.
4.2 Twin-Screw Extruders
Twin-screw extruders have two intermeshing screws in the barrel, offering superior mixing, melting efficiency, and versatility. They are designed for complex materials and high-precision applications.
Key Features:
Enhanced mixing capability for materials with additives (e.g., recycled plastics, flame retardants, or fiber reinforcements).
Higher melting efficiency, reducing energy consumption and material degradation.
Better control over sheet thickness and uniformity, critical for high-end applications.
Production speed ranges from 100–500 kg/hour, suitable for large-scale production.
Ideal For: Large manufacturers or those producing specialized sheets (e.g., automotive interior sheets, medical-grade plastic sheets, or recycled plastic sheets).
Comparison Table: Single-Screw vs. Twin-Screw Extruders
| Feature | Single-Screw Extruder | Twin-Screw Extruder |
| Mixing Efficiency | Moderate (best for pure plastics) | High (ideal for additives/recycled materials) |
| Upfront Cost | Lower | Higher |
| Maintenance | Simple (fewer parts) | More complex (dual screws) |
| Production Speed | 50–200 kg/hour | 100–500 kg/hour |
| Ideal Applications | Standard packaging, basic sheets | Specialized sheets (automotive, medical), recycled plastics |
When sourcing a plastic sheet extrusion line, prioritize these 10 features to ensure reliability, efficiency, and consistent product quality:
1.Precision Temperature Control System
A high-quality line uses zone heating with digital temperature sensors (±1°C accuracy) to prevent overheating or uneven melting. This ensures the plastic material maintains its properties, reducing sheet defects like bubbles or warping.
2.High-Torque Screw Design
The screw should be made of wear-resistant alloy steel (e.g., nitrided steel) with a optimized flight design. This enhances mixing efficiency, reduces material waste, and extends the screw’s lifespan—critical for long-term production.
3.Customizable Die Options
Look for a line compatible with interchangeable T-dies or coat-hanger dies. This allows you to produce sheets of different widths (from 500mm to 3000mm) and thicknesses (0.1mm to 20mm), adapting to diverse client orders.
4.Efficient Cooling System
A dual cooling system (water-cooled rolls + air jets) ensures rapid, uniform cooling. This locks in the sheet’s shape, improves surface smoothness, and speeds up production cycle times.
5.Automated Thickness Measurement & Control
Integrated laser or ultrasonic thickness gauges continuously monitor the sheet and adjust the die or screw speed automatically. This eliminates manual adjustments, ensuring consistent thickness across the entire sheet.
6.Energy-Saving Components
Opt for lines with energy-efficient motors (IE3 or higher) and insulated heating barrels. These reduce electricity consumption by 15–30%, lowering long-term operational costs.
7.Material Compatibility
A versatile line should handle a wide range of plastics (PP, PE, PVC, PET, ABS) and additives (recycled content, colorants, UV stabilizers). This flexibility lets you expand your product offerings without investing in new equipment.
8.User-Friendly HMI Control Panel
A touchscreen human-machine interface (HMI) allows operators to set parameters (temperature, speed, thickness) easily, store recipe settings for repeat orders, and troubleshoot issues with real-time alerts. This reduces training time and human error.
9.Robust Construction
The frame and key components should be made of heavy-duty steel to withstand continuous operation. A stable structure minimizes vibration, improving sheet quality and extending the machine’s lifespan.
10.Safety & Compliance Features
Look for safety interlocks (emergency stops, guard doors), heat shields, and compliance with international standards (CE, ISO). This protects your operators and ensures your production meets industry regulations.
Selecting the right plastic sheet extruder machine requires aligning its capabilities with your specific production needs. Follow these steps to make an informed decision:
Define Your Product Specifications: Identify the types of plastic materials you’ll use, the desired sheet thickness/width, and the quality requirements (e.g., surface smoothness for packaging, strength for automotive parts). This will determine whether a single-screw or twin-screw extruder is best.
Assess Your Production Volume: Calculate your daily/ monthly output needs. For small batches (under 100 kg/hour), a single-screw extruder is cost-effective. For high-volume production (over 200 kg/hour), a twin-screw model will deliver better efficiency.
Evaluate Your Budget: Balance upfront costs with long-term savings. Twin-screw extruders have higher initial prices but offer better energy efficiency and versatility. Single-screw models are ideal for businesses with limited capital or specialized in standard products.
Check After-Sales Support: Choose a supplier that offers installation, training, and 24/7 technical support. Quick access to spare parts and maintenance services minimizes downtime, ensuring continuous production.
Consider Future Scalability: Opt for a line with modular components (e.g., interchangeable dies, upgradeable control systems) that can adapt to growing production needs or new product lines.
Our team specializes in designing custom plastic sheet extrusion lines tailored to your unique requirements. Whether you need a compact single-screw line for small-batch production or a high-speed twin-screw line for specialized sheets, we offer end-to-end solutions—from equipment selection to installation and training.
A high-quality plastic sheet extrusion line is a strategic investment that directly impacts your product quality, operational efficiency, and bottom line. By prioritizing key features like precision temperature control, automated thickness monitoring, and energy-saving components, you can ensure consistent output, reduce waste, and stay competitive in the plastic processing industry.
Whether you’re a small manufacturer just starting out or a large enterprise looking to upgrade your production line, understanding the core components and selection criteria will help you choose a machine that meets your current needs and scales with your business. With the right extrusion line, you can expand your product offerings, satisfy client demands, and drive sustainable growth.
Ready to find the perfect plastic sheet extrusion line for your operations? Contact our expert team today for a personalized consultation and quote.
What plastic materials can a plastic sheet extrusion line handle?
Most high-quality lines work with common thermoplastics like PP, PE, PVC, PET, and ABS. They also accommodate materials with additives (recycled content, colorants, UV stabilizers) for diverse production needs.
What maintenance does a plastic sheet extruder machine need?
Key tasks include cleaning heating elements and screws regularly, lubricating moving parts quarterly, and replacing worn components (e.g., die parts) as needed. Proper upkeep extends the machine’s lifespan to 10–15 years.
Can a plastic sheet extrusion line make custom thickness and width sheets?
Yes. Interchangeable dies adjust width (typically 500mm–3000mm), while automated control systems maintain custom thicknesses (0.1mm–20mm) to fit specific project requirements.
