In modern manufacturing, the biodegradable sheet extruder embodies energy conservation and efficient processing, delivering high-quality eco-friendly sheets. Its intelligent automation reduces waste, while environmental friendliness is ensured via sustainable materials, driving green industrial development.
· Model:ZHPB-1000
· Raw Material:PBS,PLA,PBAT,PET,Bio-Based powers
· Width:350-850mm
Product Characteristics:
· Energy conservation and consumption reductior
· Efficient processing capability
· High quality finished products
· Inteligence and automation
· Environmental friendliness
Scope Of Application:

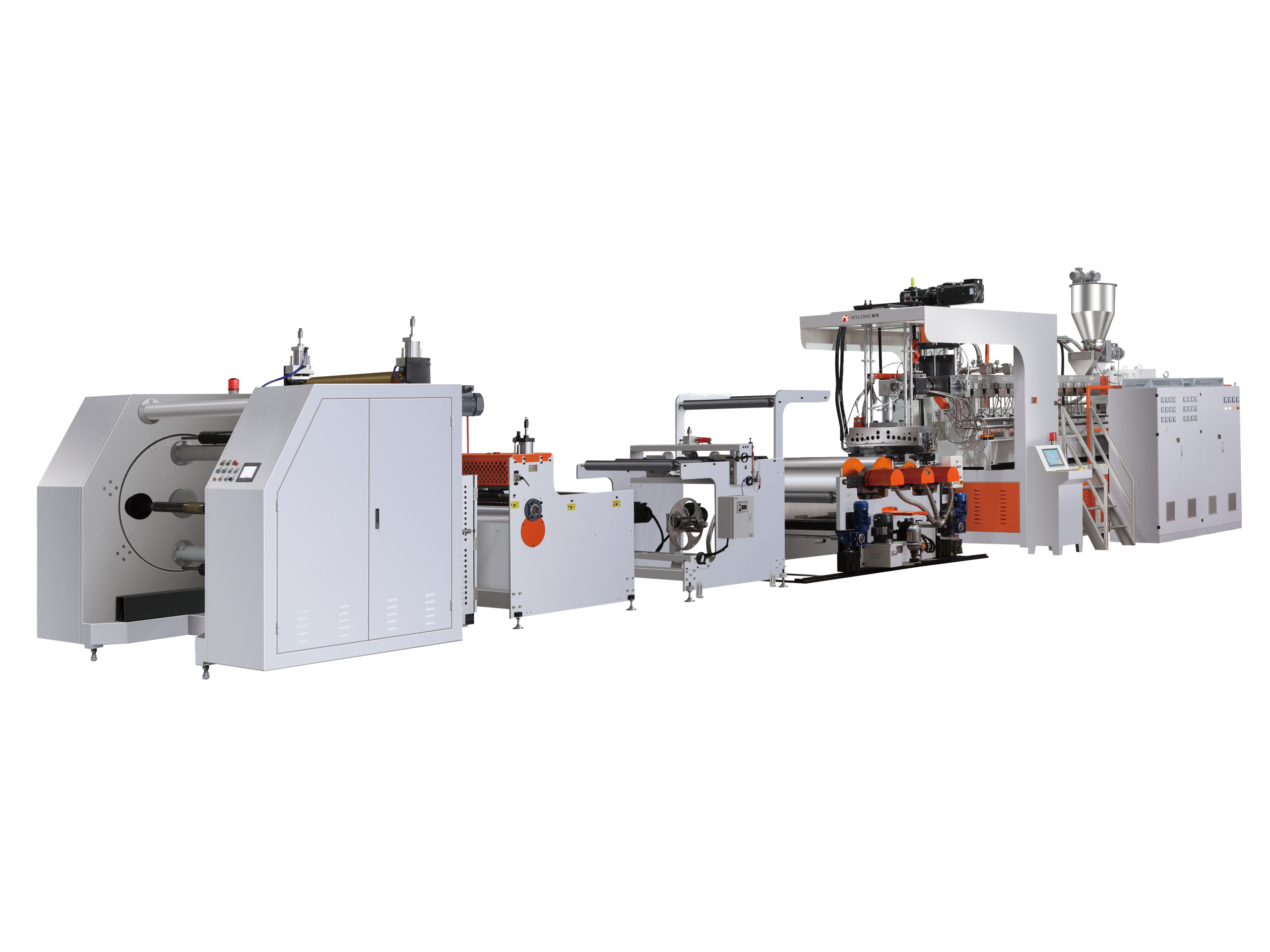

For to the initiative and promotion of environmental protection.In order to reduce plastic pollution, we havespecially developed and launched this sheet extruderline for biodegradable materials. The production lineis capable of processing a wide range of bio-basedenvironmental materials such as PLA,PBAT,PBS, cornstarch, bamboo powder and so on. Together with thehigh-efficiency mixer, it can directly process bio-powdermaterials.It adopts a newly designed special twin screwstructure with high screw hardness and wear resistance,equipped with advanced PLc system and special die headthus effectively guaranteeing the comprehensive physicalproperties of degraded sheet and subsequent processingperormance.This production line is currently the mostadvanced degradable environmental protection materialextrusion line in China.
Model | ZHPB-1000 |
Raw Material | PBS,PLA,PBAT,PET,Bio-Based powers |
Width | 350-850mm |
Thickness | 0.15-1.8mm |
Screw Diameter | 75mm 1:48 |
Three Roll Size | Down:φ2 320-1000 Middle&Upper:φ2 500*1000 |
Motor Power | 160kw |
Heating Power | 80kw |
Equipment Size | 20-2.5-2.8m |
Equipment Weight | 20ton |
Maximum Output | 400kg |
Applicable Materials:

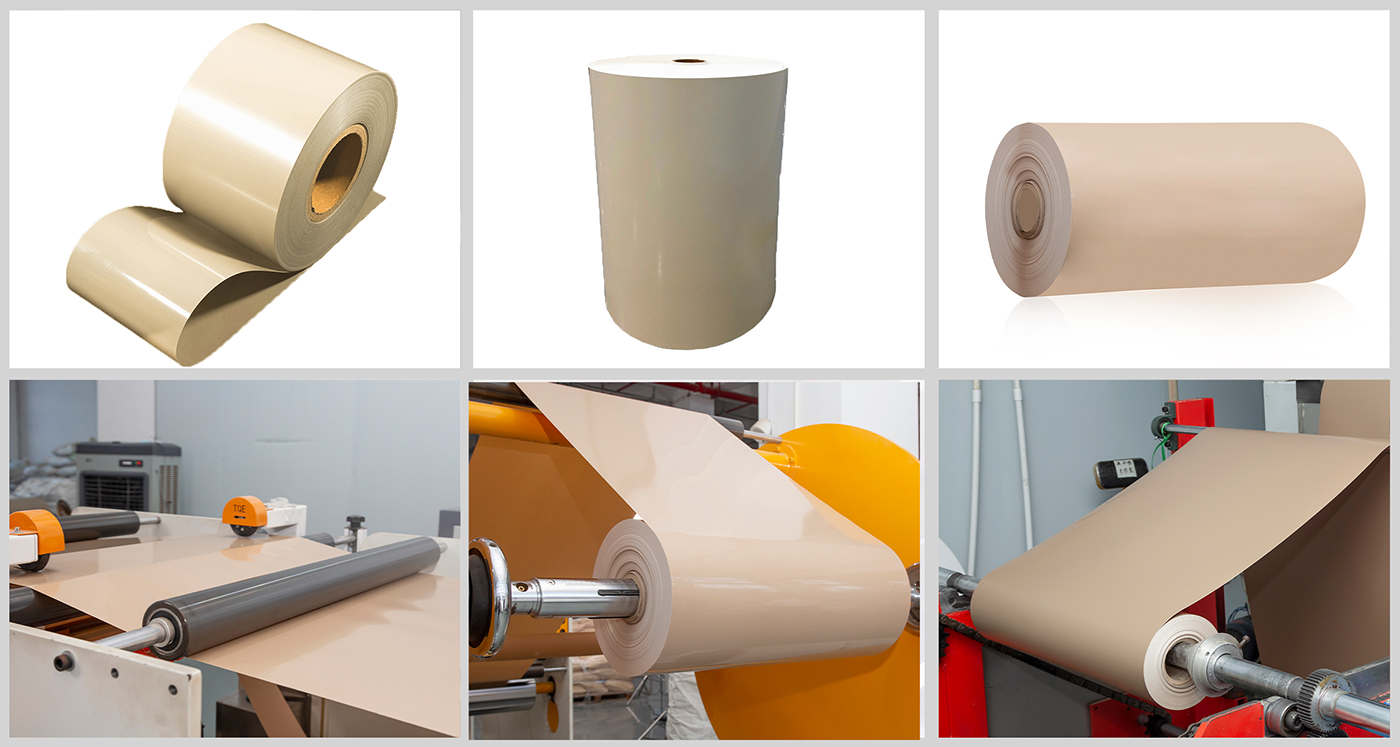

Samples :
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
Wylong provides different type of thermoforming machines. MF serial is two stations thermoforming machine is forming first, followed by a post trim press to separately trim the finished product to the packing table for packaging, also configure with scrap granulation automatically in-line. MT serial form trim in place one station machine has a small or medium size of forming bed to produce maximum 40 forming/trimming cycle speed. It is suitable for all typical thermo plastic materials, particularly for products that require precise trim tolerances such as deep draw PP containers or cups. MC series is a fully automatic thermoforming machine, designed to specifically meet the demands of production in multi-station operation by steel rule die cutting technology.
