HLFZJ Automatic Intelligent Paper Tipping Machine

Scope Of Application：

HLFZJ series Automatic intelligent high speed paper tipping machine is the supporting equipment of high-speed paper mounting machine. It can be connected with the paper mounting machine of any manufacturer to stack the mounted paper according to the specified quantity. It is an intelligent automatic equipment integrating the functions of paper receiving, stacking, intermittent turnover and stacking, which realizes positive and negative stacking and can effectively prevent the deformation of paperboard after mounting, It can effectively reduce the labor intensity of manual paper receiving. The paper turning part adopts servo control system, with the whole process positioning of paper receiving, the maximum speed of 15000 sheets / hour, easy operation, convenient maintenance and neat paper stacking.

Performance feature:

◆ Maximum speed 15000 PCS / h
◆ Fully realize intelligent automation
◆ Replace the automatic paper size adjuster
◆The paper turning part adopts servo control system
◆ Automatic replacement device for receiving paperboard
◆ Whole process positioning of paper receiving
◆ Yade pneumatic element
◆ Intelligent fault display alarm system

Model	HLFZJG-1450G
Max.sheet size	1450*1350mm
Min.sheet size	500*500mm
Max.speed	15000P/H
Dimension	12.52.53m
Weight	6000kg
Power	15kw/380v

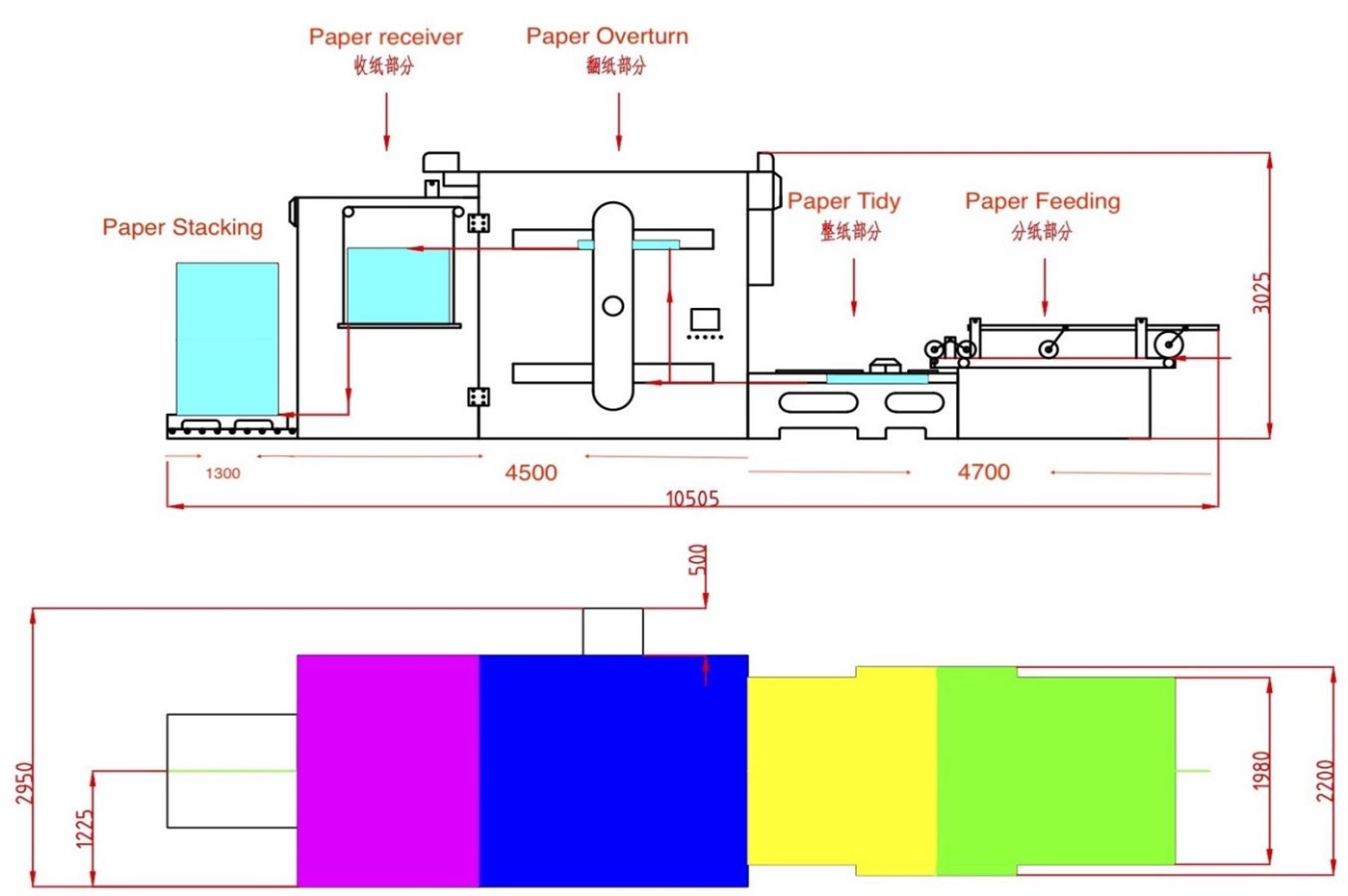

2DSketch:

Model	HLFZJG-1650G
Max.sheet size	1650*1450mm
Min.sheet size	500*500mm
Max.speed	15000P/H
Dimension	12.52.73
Weight	6800kg
Power	16kw/380v

2DSketch:

Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.

Q2: What is the production time?
Reply: Normally we need around 45 days.

Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.

Q4: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
