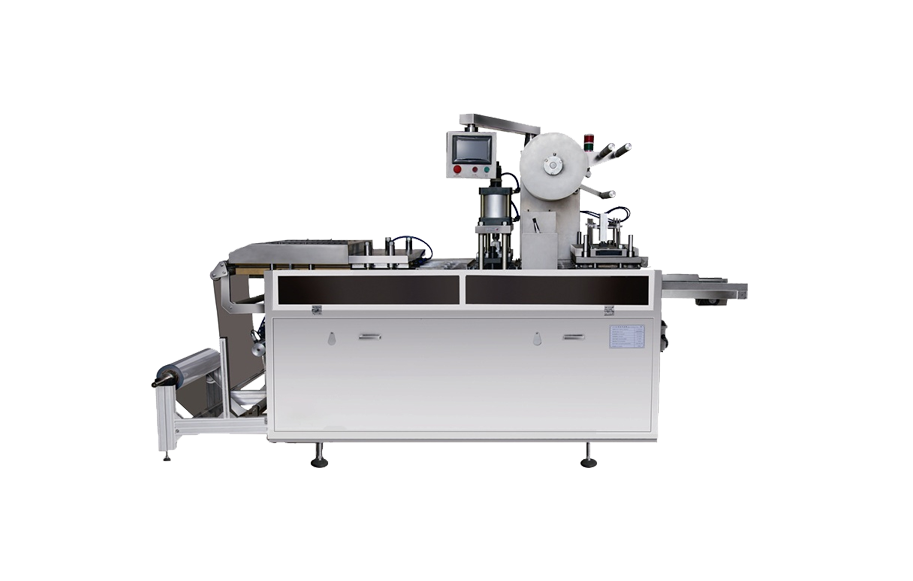

Automatic Plastic Lid Products Thermoforming Machine

Applications :

JC-500C Automatic Plastic Products Thermoforming Machine are developed by our research and development department, according to the demand of packing market. Absorbing the advantages of aluminum-plastic blister packaging machine and plastic molding machine, the new machine developed according to the requirements of medical “GMP” and food “QS” standards. Machine adopts automatic forming, punching and cutting as the special properties of product requires of the users. With advanced technology, safe and simple operation, avoiding the consumption of labor caused by manual punching and the pollution caused by the employees during work, guarantee the quality of products. The machine equipped with panels heating, low power consumption, small external footprint, economical and practical. So the machine is widely used in manufacturing lids, covers, trays, plates, boxes.

Performance Characteristics:

· The machine realizes automatic control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.

· The mechanical transmission adopts the reducer and the main rotation connection. Forming, punching, pulling, and punching stations are on the same axis to ensure operational synchronization (reduced transmission error).

· Automatic lifting and loading material system is safe and labor-saving, plate type upper and lower preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, servo traction are intelligent and reliable, punching and punching knife are durable and no burr, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.

· The whole body is welded by steel box, the structure is firm and no deformation, the bracket and the box are under pressure molding, high density and no air holes, and the appearance is evenly wrapped with stainless steel, which is beautiful and easy to maintain.

· The roller servo traction system makes the machine run more stable and reliable, increases the traction length and can directly set the traction length and traction speed in the man-machine interface through PLC programming, which increases the forming area and expands the applicable range of the machine.

Model	ZHBG-500
Punch Speed	10-35 times/minute
Max. Forming Size	470*290mm
Max. Forming Depth	47mm
Raw Material	PVC, PET, PS
Max. Sheet Width	500mm
Sheet Thickness	0.15-0.7mm
Sheet Inner Roll Diameter	75mm
Stoke	60-300mm
Total Power	11.5Kw
Main Motor Power	2.2Kw
Overall Dimension	350010001800mm
Weight	2400 KG

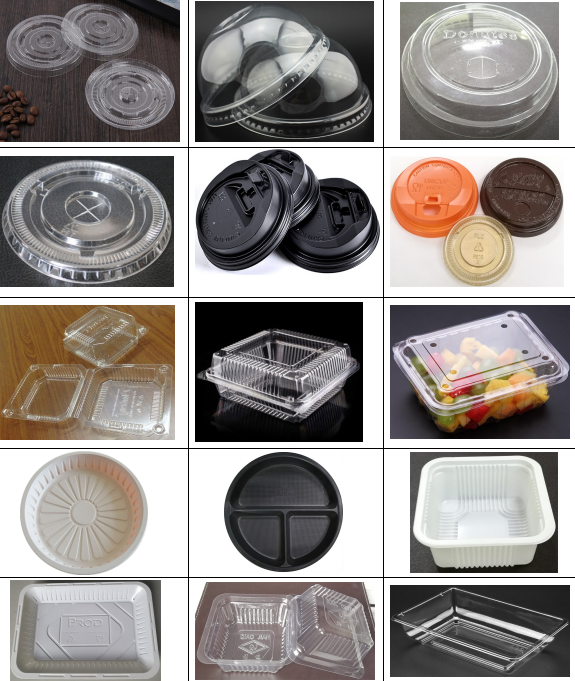

Samples :

Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.

Q2: What is the production time?
Reply: Normally we need around 45 days.

Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.

Q4: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.

Wylong provides different type of thermoforming machines. MF serial is two stations thermoforming machine is forming first, followed by a post trim press to separately trim the finished product to the packing table for packaging, also configure with scrap granulation automatically in-line. MT serial form trim in place one station machine has a small or medium size of forming bed to produce maximum 40 forming/trimming cycle speed. It is suitable for all typical thermo plastic materials, particularly for products that require precise trim tolerances such as deep draw PP containers or cups. MC series is a fully automatic thermoforming machine, designed to specifically meet the demands of production in multi-station operation by steel rule die cutting technology.
