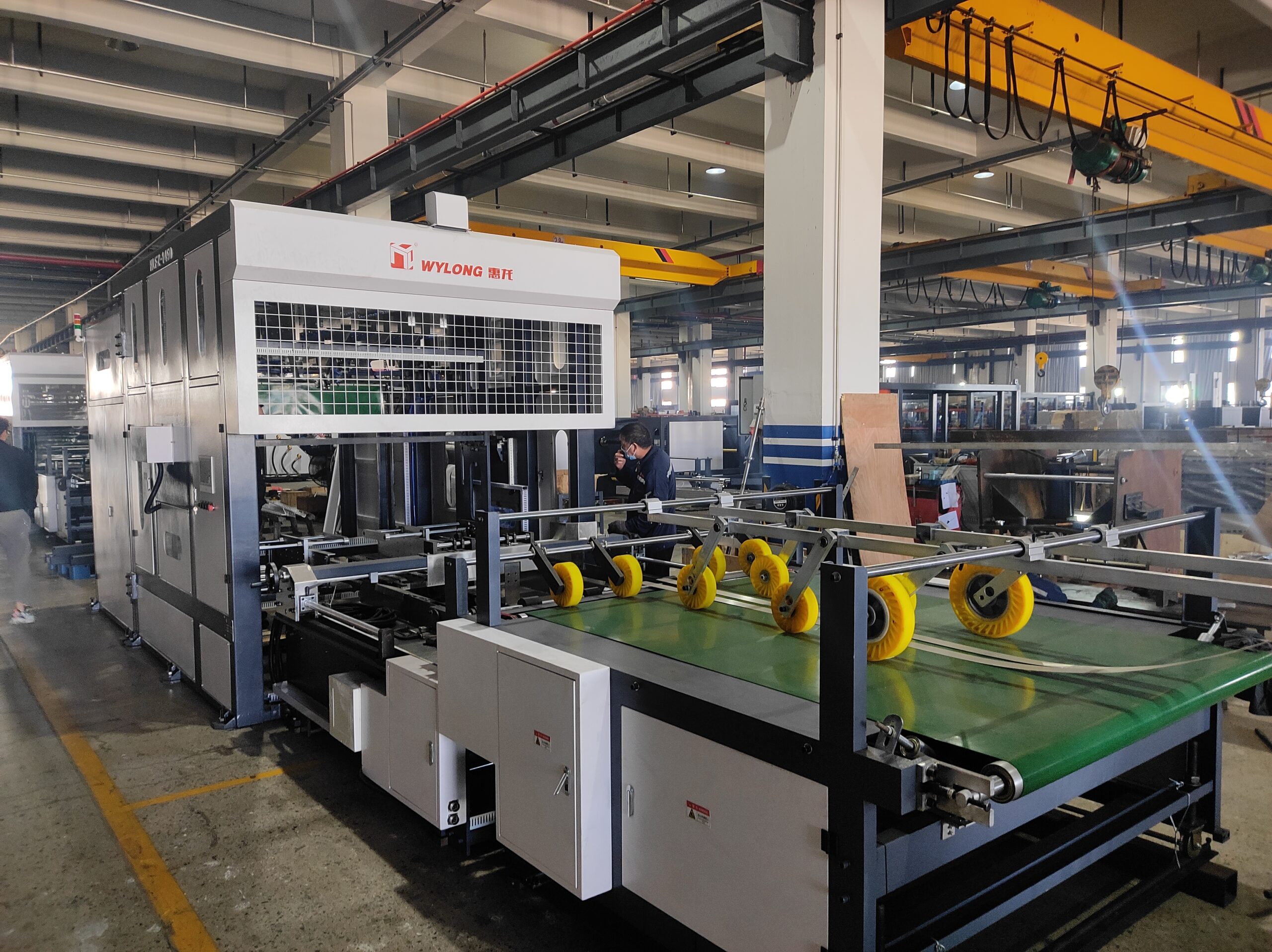

HLFZJ series Automatic intelligent high speed paper tipping machine is the supporting equipment of high-speed paper mounting machine. It can be connected with the paper mounting machine of any manufacturer to stack the mounted paper according to the specified quantity. It is an intelligent automatic equipment integrating the functions of paper receiving, stacking, intermittent turnover and stacking, which realizes positive and negative stacking and can effectively prevent the deformation of paperboard after mounting, It can effectively reduce the labor intensity of manual paper receiving. The paper turning part adopts servo control system, with the whole process positioning of paper receiving, the maximum speed of 15000 sheets / hour, easy operation, convenient maintenance and neat paper stacking.
TECHNICAL PARAMETERS
| Model | HLFZJ-1450G | HLFZJ-1680G |
| Max. Sheet Size | 1450*1450mm | 1650*1650mm |
| Min. Sheet Size | 500*500mm | 500*500mm |
| Max. Speed | 15000 P/H | 15000 P/H |
| Dimension | 11.5*2.5*3m | 12.5*2.7*3m |
| Weight | 6000kg | 6800kg |
| Power | 15kw/380v | 16kw/380v |
1、Maximum speed 15000 PCS / h
2、Fully realize intelligent automation
3、Replace the automatic paper size adjuster
4、The paper turning part adopts servo control system
5、Automatic replacement device for receiving paperboard
6、Whole process positioning of paper receiving
7、Yade pneumatic element
8、Intelligent fault display alarm system
|
|

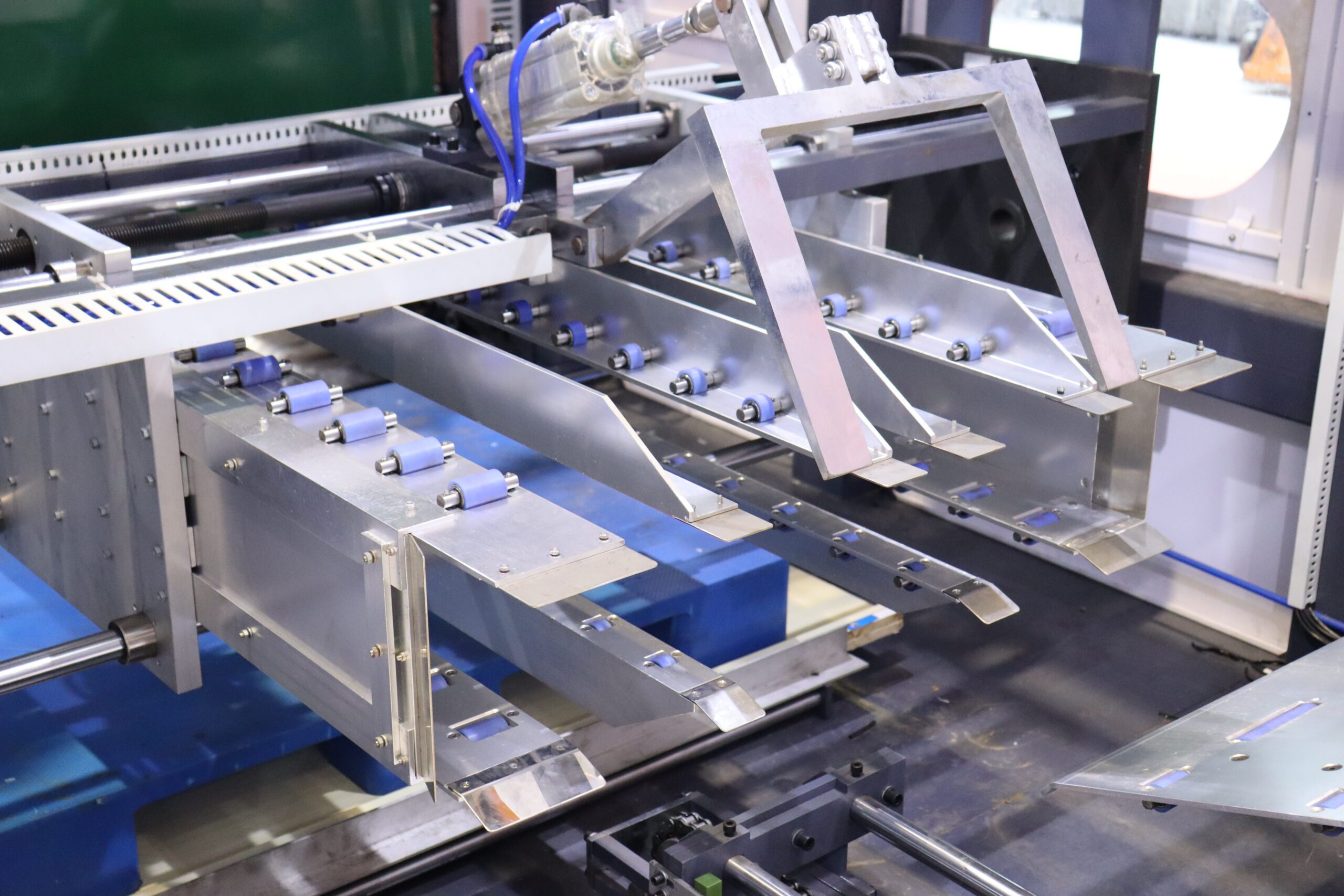

Paper separation system: The transmission wheel is connected to the belt of the laminating machine press to transmit power. The laminated paper is divided by the transmission wheel and the synchronous belt and falls to the lower paper push table. When the set number of sheets is reached, the paper separation rod lifts. to separate the paper. |
 |

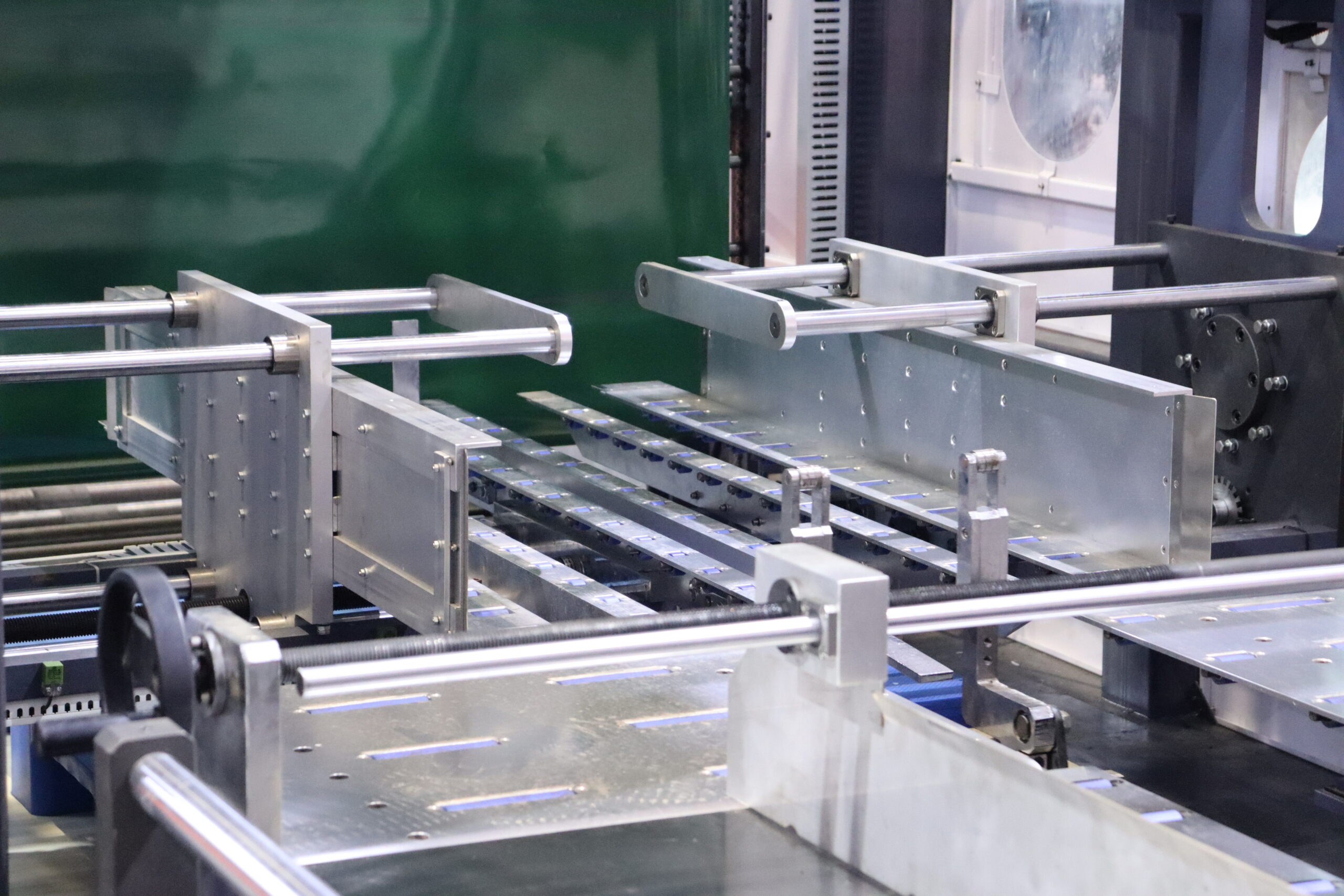

Whole paper system: use the cylinder to drive the two push claws to move forward, and push a set number of sheets of paper into the turning mechanism. |
 |

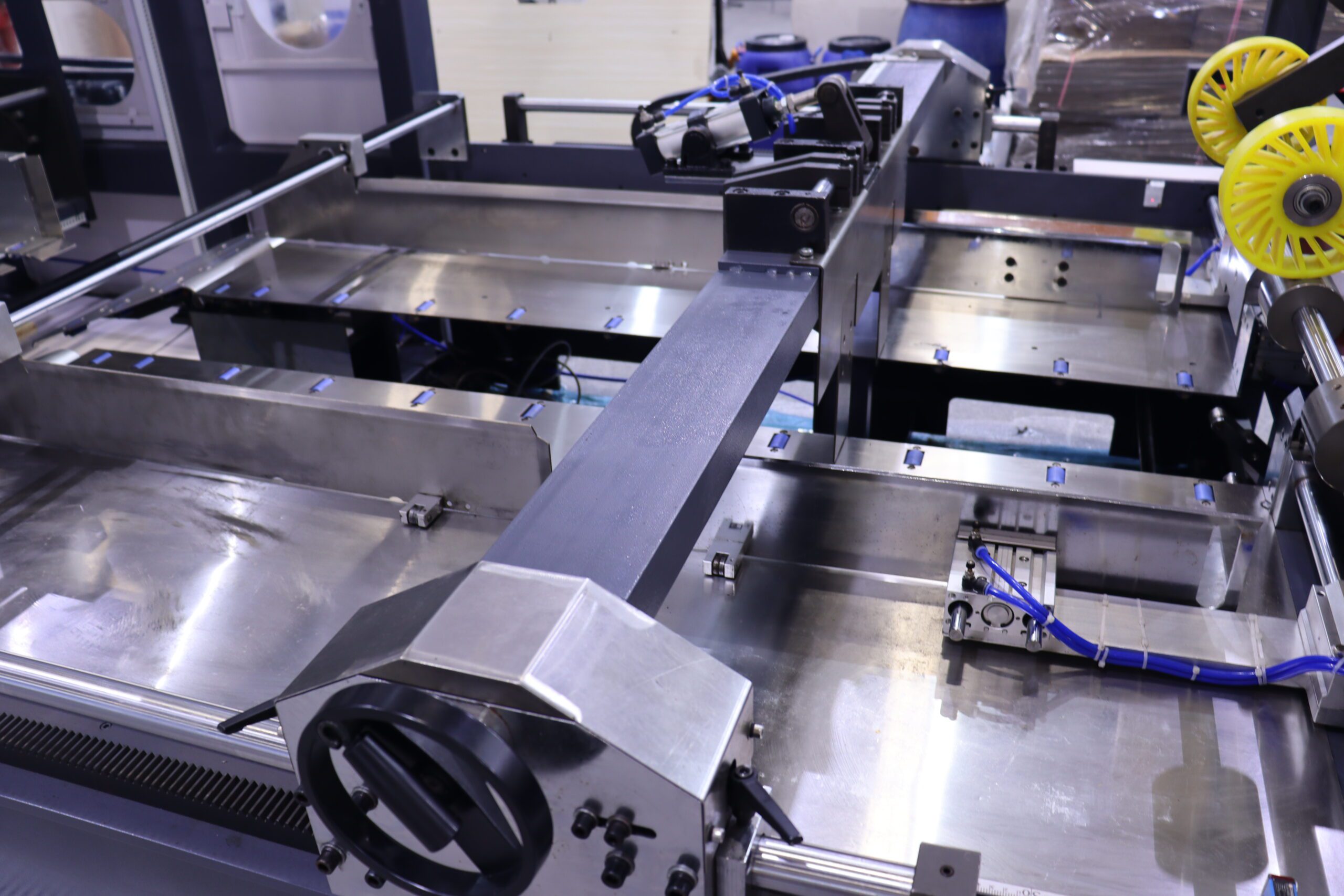

Turning system: Use the automatic clamping system to stack the front and back of the paper neatly and neatly, so that the mounted product is flat, stiff and does not open the glue, which is more conducive to subsequent production |
 |
Push-up paper system: use the motor to drive the chain to drive the push-up plate to move forward and backward to push the rising stack of paper into the delivery table for stacking. |
 |
Stacking system: The reciprocating motion of the four-sided splint will slap the received paper on all four sides and straighten it to ensure the neatness of the delivery. |
|
|
Electrical system: designed in accordance with European CE standards to ensure the stability, high efficiency and low failure of the whole machine. The man-machine interface is combined with PLC, the program design is reasonable, the operation can be completed with one key during work, and the fault can be automatically detected. |
 |

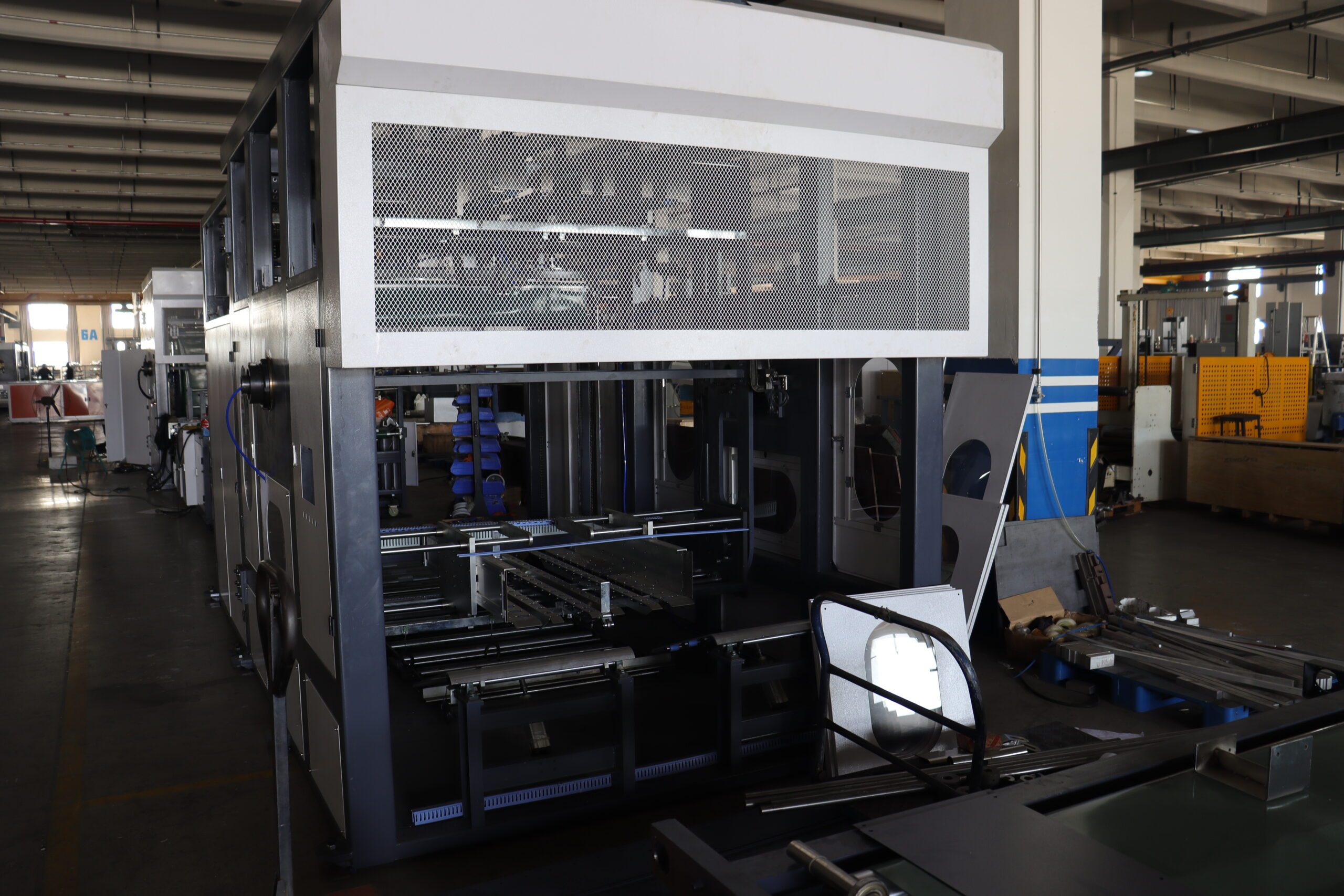

Paper delivery system: When the paper is stacked to a height of 1.7 meters, the delivery table will automatically lower, and the whole stack of paper will be pulled out by a hydraulic truck. At the same time, the auxiliary delivery table will automatically intervene to complete the non-stop delivery of paper. |
