Introduction

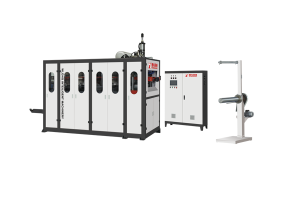

Tooling is the foundation of every thermoformed product. Even with a high-precision thermoforming machine, the mold must be designed correctly to achieve stable forming, consistent thickness, and the right surface quality. Good tooling not only improves part accuracy but also reduces defects, lowers scrap, and keeps production efficient. For factories using WYLONG’s multi-station thermoforming machines, choosing the right tooling ensures that materials like PP, PET, PS, PLA, and ABS form smoothly and deliver the expected product quality. This guide explains how thermoforming tooling works, the different types of molds, the common tooling materials, and how to choose the best option for your project.

How Thermoforming Tooling Works (Basic Process Overview)

Thermoforming tooling shapes the heated plastic sheet into the final part. After the sheet is heated to a flexible state, it is pulled against the mold surface using vacuum, pressure, or both. Tooling includes the mold body, vents, cooling channels, and surface finishing. When the tooling design is correct, the sheet fits the mold tightly, forming clear edges, stable corners, and consistent depth. Once the forming is complete, the part cools on the mold surface before trimming. Accurate tooling helps WYLONG machines maintain fast cycle times and stable forming results across high-volume production.

Types of Thermoforming Molds

Male Molds

Male molds, also called plug or protruding molds, rise upward toward the sheet. The plastic drapes over the mold, so most material ends up on the outer surface. Male molds are often less expensive and are good for products where a smoother outer surface is preferred. They are commonly used for cups, lids, and simple containers.

Female Molds

Female molds are cavity molds that pull the sheet downward into a hollow shape. They allow more detailed shapes, sharper corners, and deeper structures. Female molds usually produce better definition and are used in applications like trays, medical packaging, and products requiring precise details.

Tooling Materials

Thermoforming molds are typically made from aluminum, resin board, or composite materials. Machined aluminum molds are CNC-cut from solid blocks and provide high precision, good venting, and strong durability. Cast aluminum molds are formed by pouring melted aluminum into a mold shape; they cost less but may need more venting. Prototype tooling may use materials like wood, epoxy, or 3D-printed resin for short runs or testing. For high-volume production on WYLONG multi-station machines, aluminum tooling is the most reliable option.

Factors to Consider When Choosing Tooling

Selecting the right tooling requires understanding the product’s shape, surface needs, and production goals.

Part Complexity

Products with deep cavities, sharp edges, or undercuts require more precise molds. Complex shapes often benefit from female molds and high-precision machining.

Cosmetic Requirements

If the part needs a smooth outer surface, clear details, or specific gloss levels, the tooling surface and finishing become more important.

Texture and Finishing

Adding texture to the mold creates matte finishes, anti-slip surfaces, or decorative patterns. Texture requires a harder material and careful machining.

Production Volume

Large-volume production requires durable tooling that can handle long-term cycles without losing accuracy. Aluminum is ideal for continuous use on fast thermoforming lines like the WYLONG ZHD and ZHS series.

Cost and Lead Time

Prototype molds are cheaper and faster to produce but not suitable for long-term use. Production tooling costs more but delivers better accuracy and life span. Choosing the right option depends on the project stage.

Tooling Cost Overview

Tooling cost depends on mold size, shape complexity, material type, surface finishing, venting requirements, and the need for cooling channels. Larger forming areas, deeper cavities, or detailed textures increase machining time and cost. High-quality aluminum tooling has a higher initial price but provides faster forming cycles, better consistency, and longer life. Factories using WYLONG machines often choose aluminum molds because they support high-speed production and maintain stable product quality over time.

Tips for Better Tooling Performance and Product Quality

Good tooling performance comes from a combination of design, material selection, and maintenance. Keeping mold vents clean ensures smooth air flow during forming. Polishing or texturing the mold surface helps achieve the desired appearance and reduces sticking. Cooling channels must maintain stable temperatures to avoid warping or uneven thickness. Regular inspection prevents small issues from turning into defects. When tooling works well with a stable machine, forming becomes faster, cleaner, and more consistent.

Conclusion

Thermoforming tooling is essential for producing accurate, high-quality parts. Understanding the different tooling types, materials, and cost factors helps factory owners and operators choose the right mold for each application. Male molds offer simple forming for cups and lids, while female molds support deeper and more detailed products. Aluminum tooling remains the best choice for high-volume and high-speed thermoforming lines. With advanced multi-station thermoforming machines, WYLONG provides stable heating, precise forming, and efficient production, making it easier for factories to achieve better product quality with lower scrap rates. If your project requires custom tooling or machine support, the WYLONG team is ready to help you find the right solution.
